UV Soft Film Fabric Lightbox Installation Tutorial
Installation Steps and Instructions:
1. Insert corner fittings
2. Secure corner screws
3. Secure bottom corner screws
4. Secure the LED strip to the base plate
5. Reinforce the LED strip in the middle with glue
6. Connect the red wire to V+ and the white wire to V- (one power supply is recommended for 2-3 square meters)
7. Connect the other end of the power supply (L & N) to the 220V input line (positive and negative are not important)

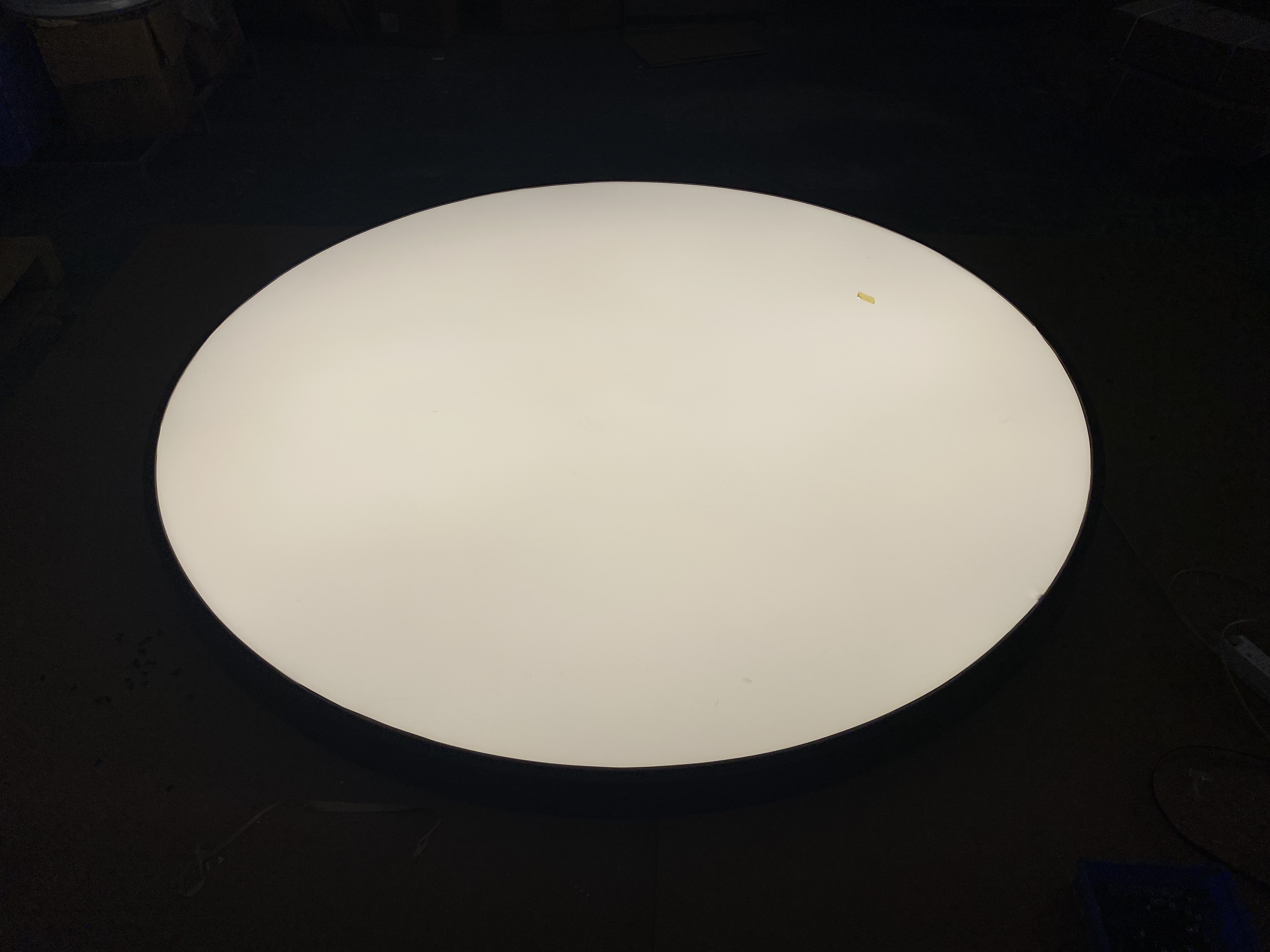

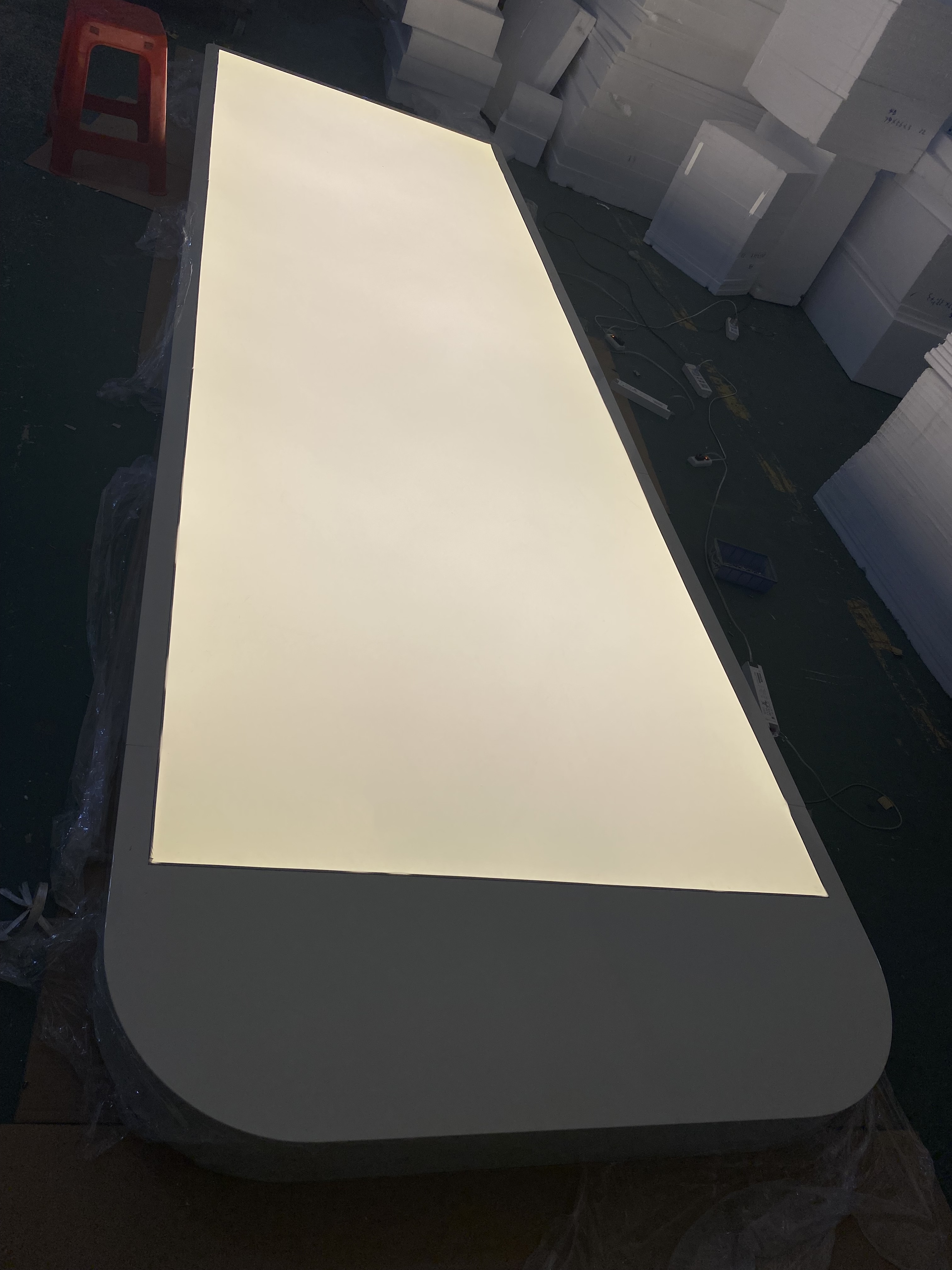

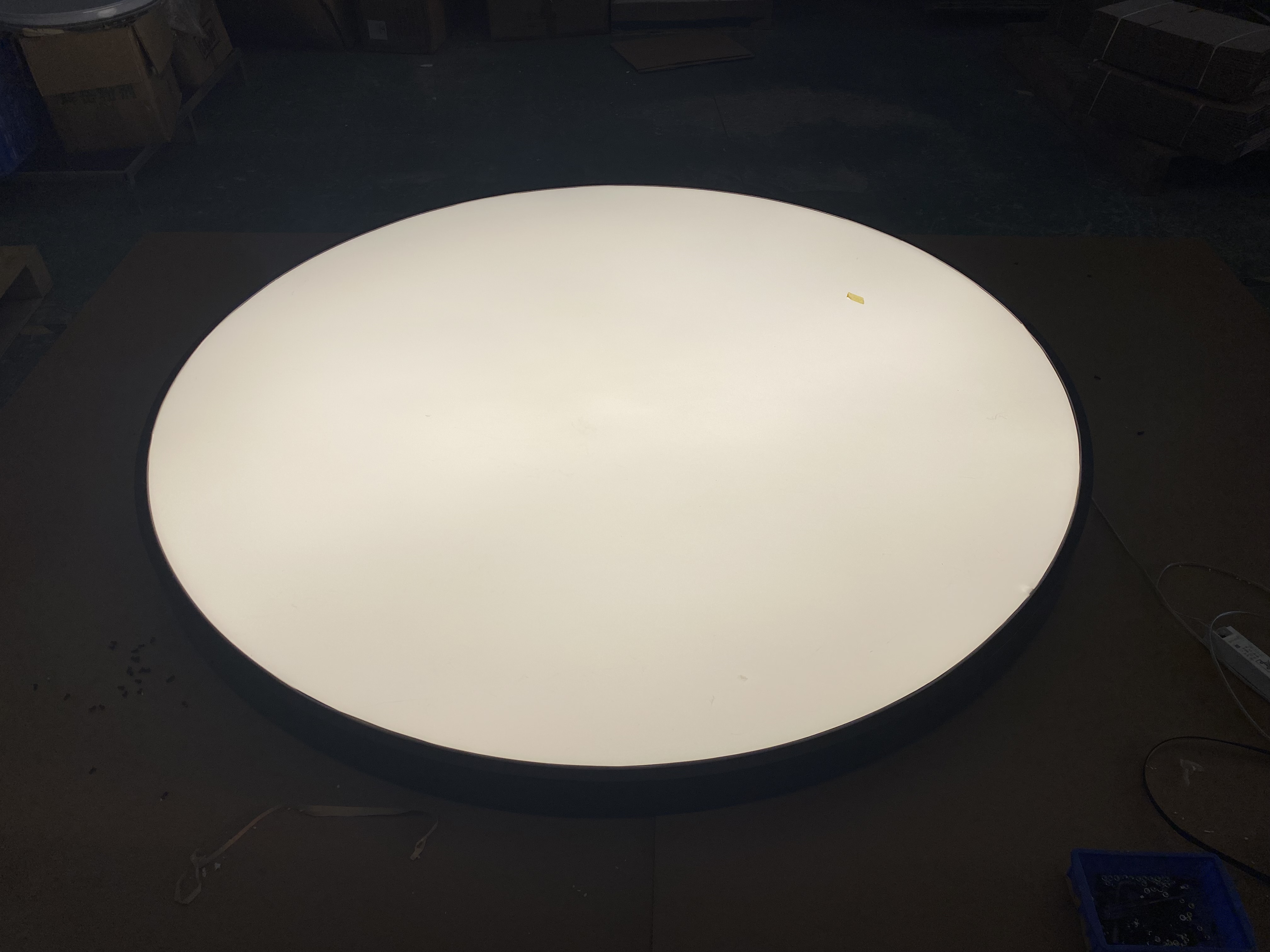

8. Check the lighting effect after powering on
9. Install the graphic (install the four corners first). Insert the perimeter strips of the soft film into the lightbox profile slots.
The installation of the fabric soft film lightbox is now complete.
